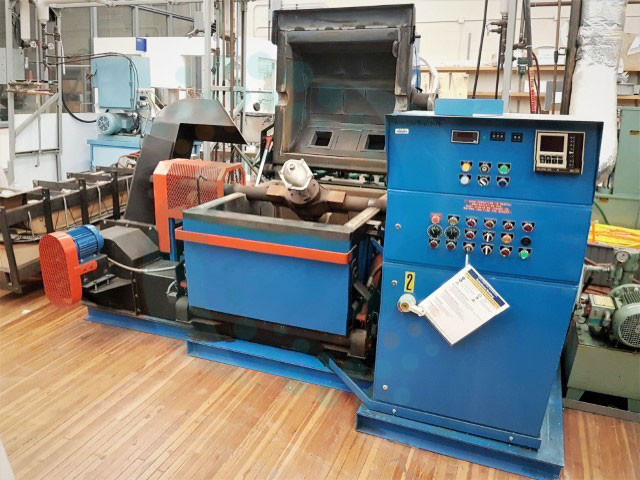

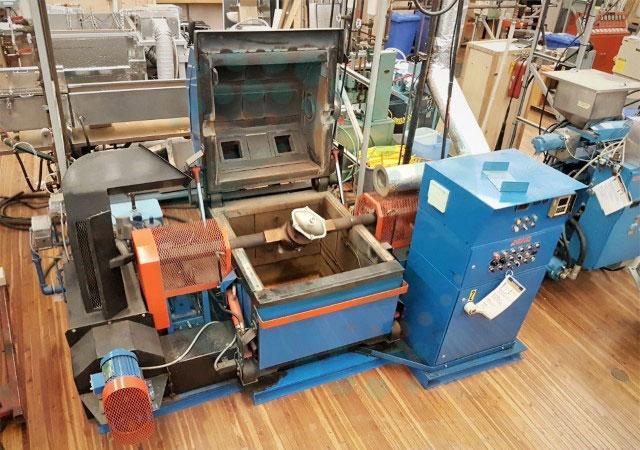

Manufacturer: Friesteel
Model: Rotoflow M20
Power Feed 1: 230V, 3PH, 60HZ, 20A, Power Feed 2: 110V, 1PH, 60HZ, 15A
Gas Feed (Heater): Natural gas
Shell Opening (Width x Depth): 32”W x 35”D
Approximated Spherical Swing: 25″
Adjustable rotation direction and speed,
Approximate dimensions and weight: 10’W x 6’D x 5’H(*) Ft / 5000 lbs.
(*) 7 Feet height with clamshell open

Mold Rotation Motor Specification: Blower Motor Specification
��� Manufacturer: TEFC Manufacturer: Baldor
��� Power Spec: 3.4A @ 230V / 1.7A Power Spec: 1.5A-1.4A @ 108V-230V / 0.7A
@ 460V, 3PH, 60HZ, 3HP @ 460V, 3PH, 60 HZ, 3HP
��� Motor RPM: 1735 Motor RPM: 3450

*Water connection for cooling required.
*Manuals not included
*Exhaust blower not included

*The list is subject to change without notice*
